For many Jeep enthusiasts, the rumble of a classic Wrangler YJ or the rugged utility of an XJ Cherokee brings a smile to their face. These iconic vehicles, particularly those equipped with the 2.5L four-cylinder engine, often relied on a trusty manual gearbox: the Aisin AX5 transmission. As these beloved Jeeps age, components wear out, and the search for a replacement AX5 transmission becomes a common quest for owners looking to keep their rigs on the road or trail.

This comprehensive guide is designed to be your definitive resource for understanding, locating, and purchasing a Jeep AX5 transmission for sale. We’ll delve into what makes this transmission unique, why you might need one, where to find it, crucial buying considerations, and practical advice to ensure you make an informed decision.

Jeep AX5 Transmission For Sale: Your Comprehensive Guide to Finding and Buying the Right Unit

Understanding the Jeep AX5 Transmission: A Core Component

The Aisin AX5 is a 5-speed manual transmission produced by Aisin Seiki Co. Ltd., a Japanese automotive components manufacturer. It was widely adopted by Jeep for its smaller-engined vehicles, primarily the 2.5-liter (150 cubic inch) four-cylinder models. Its appeal lay in its compact size, relatively light weight, and straightforward design, making it suitable for the lighter duty cycles of these engines.

Key Vehicles That Used the AX5:

• Jeep Wrangler YJ (1987-1995): Paired with the 2.5L AMC 150 I4 engine.
• Jeep Cherokee XJ (1984-2000): Predominantly with the 2.5L AMC 150 I4, but some early XJs with the 2.1L Renault Diesel also used a variant.
• Jeep Comanche MJ (1986-1992): Again, primarily with the 2.5L AMC 150 I4.



• Early Jeep Wrangler TJ (1997-1999): Used with the 2.5L PowerTech I4 engine before being phased out for the NV1500.

Pros of the AX5:

• Compact and Lightweight: Contributes to better fuel economy and easier installation compared to heavier units.



• Simple Design: Makes it relatively easy to rebuild for experienced mechanics.
• Good for Stock Applications: Performs well when paired with its intended 2.5L engine and stock tire sizes.

Cons and Common Issues:

• Limited Strength: The AX5 is not known for its robust construction. It struggles with increased horsepower, larger tires, heavy off-roading, or aggressive driving. This is why it’s almost never swapped behind a 4.0L engine.

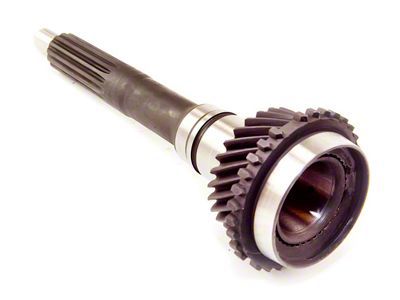

• Common Failure Points: Bearings (especially input shaft bearing), synchros (leading to grinding gears, particularly 3rd and 5th), and sometimes the main shaft or countershaft can wear prematurely.
• Fluid Sensitivity: Requires specific GL-3 or GL-4 manual transmission fluid; using GL-5 (which contains sulfur compounds) can damage the brass synchros over time.

Why You Might Be Searching for an AX5 Transmission

The primary reason most individuals seek an AX5 transmission for sale is to replace a failing unit in their existing Jeep. After decades of service, even well-maintained transmissions can succumb to wear and tear. Other reasons include:

• Catastrophic Failure: A bearing seizes, gears strip, or the case cracks due to severe stress or lack of lubrication.
• Persistent Shifting Problems: Grinding gears, difficulty engaging certain gears, or popping out of gear, indicating worn synchros or internal components.
• Excessive Noise: Whining, clunking, or rattling sounds that point to worn bearings or gear lash.
• Fluid Leaks: While sometimes repairable with new seals, extensive leaks can lead to internal damage if ignored.
• Restoration Projects: Bringing a classic Jeep back to original specifications often requires a functional and correct transmission.

Where to Find a Jeep AX5 Transmission For Sale

Locating an AX5 can range from a straightforward online purchase to a treasure hunt in a salvage yard. Your choice will depend on your budget, desired condition, and urgency.

1. New (Rare, Usually Remanufactured):

   • True "new" AX5 transmissions are virtually non-existent, as Aisin stopped production long ago.
   • What’s marketed as "new" is almost always a remanufactured or rebuilt unit.

2. Remanufactured/Rebuilt Transmissions:

   • Specialized Transmission Shops: Many reputable shops offer professionally rebuilt AX5s, often with a warranty.
   • Online Automotive Parts Retailers: Companies like Quadratec, Morris 4×4 Center, Extreme Terrain, and even general auto parts sites (AutoZone, O’Reilly’s, Advance Auto Parts via their commercial divisions) often list remanufactured units.
   • Dedicated Jeep Parts Suppliers: Websites like Novak Conversions (known for their excellent technical resources and adapters) or Advance Adapters might list sources or even offer their own rebuilt units.
   • Pros: Typically come with a warranty, professionally inspected and repaired, ready to install.
   • Cons: Higher cost than used units.

3. Used Transmissions:

   • Salvage Yards/Junkyards: A traditional source for used parts. You might find an AX5 pulled from a donor Jeep. Pros: Lowest cost. Cons: No warranty, unknown history, condition can vary wildly, often requires a full rebuild.
   • Online Marketplaces: eBay, Craigslist, Facebook Marketplace, and local classifieds are common places to find individuals selling used parts. Pros: Can find local deals, potentially inspect before buying. Cons: "As-is" sales, difficult to verify condition without expertise.
   • Jeep Forums & Enthusiast Groups: Online communities (e.g., JeepForum.com, NAXJA.org for XJ) often have "for sale" sections where members sell parts. Pros: Can get advice, potentially buy from a known enthusiast. Cons: Still "as-is" in most cases.

Key Considerations When Buying an AX5 Transmission

Making an informed decision is paramount to avoid buyer’s remorse and costly re-dos.

1. Condition and Warranty:

   • New/Remanufactured: Look for a clear warranty (e.g., 1-year, 2-year unlimited mileage). This is your best bet for peace of mind. Understand what the warranty covers (parts only, labor, shipping).
   • Used: Assume it will need a rebuild unless you can verify its working condition before removal from a running vehicle. If buying a pulled unit, there’s usually no warranty.

2. Compatibility:

   • Year and Engine: While most AX5s are for the 2.5L engine, subtle differences can exist between model years (e.g., input shaft length, sensor locations). Always confirm the exact year and model of your Jeep and the donor/rebuilt unit.
   • Transfer Case: The AX5 typically mates with the NP231 (New Process 231) transfer case. Ensure the output shaft spline count matches your transfer case input.
   • Bell Housing: The AX5 has an integrated bell housing designed specifically for the 2.5L engine. It cannot be directly bolted to a 4.0L engine.

3. Signs of Wear/Damage (for used units):

   • Fluid Condition: Check the fluid for metal shavings (bad sign) or milky appearance (water contamination).
   • Input/Output Shaft Play: Excessive wobble indicates worn bearings.
   • Cracks/Damage: Inspect the case for cracks, especially around mounting points.
   • Seller’s Story: Ask why it was removed. "It worked great, just upgraded" is better than "It was making some noise."

4. Price vs. Value:

   • A cheap used AX5 might seem appealing, but if it requires a full rebuild (which can cost $500-$1000+ in parts and labor), you might be better off buying a warrantied remanufactured unit upfront.
   • Factor in shipping costs if buying online, which can be substantial for a transmission.

Tips for a Successful AX5 Purchase

• Do Your Homework: Verify your Jeep’s exact year, engine, and current transmission type. Have your VIN ready.
• Ask Detailed Questions: For used units, inquire about mileage, history of fluid changes, any reported issues before removal, and the donor vehicle’s VIN if available.
• Get It in Writing: If a warranty is offered, ensure it’s clearly documented.
• Inspect Thoroughly: If buying locally, go and see the transmission. Bring a flashlight and look for signs of abuse or neglect.
• Budget for Supporting Components: When replacing a transmission, it’s highly recommended to also replace the clutch kit (pressure plate, clutch disc, throwout bearing), pilot bearing, and possibly the slave cylinder and master cylinder. These add to the total cost but prevent premature failure of the new transmission.
• Consider Professional Installation: Unless you are an experienced DIY mechanic with the right tools, professional installation is often the safest bet.

Installation and Maintenance Advice

Once you have your AX5, proper installation and ongoing maintenance are crucial for its longevity.

• Professional vs. DIY: Transmission swaps are labor-intensive and require specific tools (transmission jack, appropriate sockets, torque wrench). If in doubt, consult a professional mechanic.
• New Components are Key: Always replace the clutch kit, pilot bearing, and throwout bearing. A worn pilot bearing is a common cause of input shaft bearing failure.
• Correct Fluid: Use only the manufacturer-recommended GL-3 or GL-4 fluid. Never use GL-5 unless explicitly stated as "safe for yellow metals." Most AX5s require 3.4 quarts.
• Proper Break-In: For remanufactured units, follow the builder’s break-in recommendations, which usually involve avoiding heavy loads and aggressive driving for the first few hundred miles.
• Regular Fluid Changes: Change your transmission fluid every 30,000 to 50,000 miles, or more frequently if you engage in heavy off-roading or towing. This is the single most important maintenance item for a manual transmission.
• Drive Responsibly: Avoid "power shifting," excessive clutch slipping, or lugging the engine in high gears, especially with larger tires. Consider re-gearing your axles if running significantly oversized tires to reduce strain on the drivetrain.

Practical Advice and Actionable Insights

• For Peace of Mind, Buy Remanufactured: While more expensive, a remanufactured AX5 with a warranty offers the best balance of reliability and long-term value.
• If Buying Used, Assume a Rebuild: Unless you can personally verify the transmission’s perfect working order, budget for a rebuild. A $300 used transmission can quickly become a $1000+ project.
• Prioritize Compatibility: Double-check all specs – year, engine, bell housing type, input/output shaft splines. An incompatible unit is useless.
• Total Cost, Not Just Purchase Price: Always factor in shipping, new clutch components, fluid, and potential installation labor when comparing options.

Jeep AX5 Transmission For Sale: Estimated Price Table

Prices can vary significantly based on location, seller, and market demand. This table provides general estimates.

Condition Category	Description	Estimated Price Range (USD)	Notes
New	Not truly "new" from factory; refers to professional remanufactured units.	$1,000 – $1,800+	Best option for reliability and warranty. Often requires a core exchange. Price does not include shipping or installation.
Remanufactured	Professionally rebuilt with new wear parts (bearings, synchros, seals).	$800 – $1,500	Most common and recommended option for a direct replacement. Look for a warranty (1-2 years).
Used (Tested Good)	Pulled from a running vehicle, claimed to be in working order.	$300 – $600	High risk; "tested good" is subjective. No warranty typically. Assume it might need a rebuild or has limited lifespan.
Used (As-Is/Core)	Untested, high mileage, or known issues; primarily sold for rebuilding.	$100 – $350	Best suited if you plan a full rebuild yourself or have a local trusted rebuilder. Core charge for remanufactured units.
Rebuild Kit	Parts only (bearings, synchros, seals, gaskets) for DIY or professional rebuild.	$200 – $500	Does not include labor or specialized tools. Quality of kits can vary.

Note: These prices are estimates and do not include shipping, core charges (if applicable), or installation labor.

Frequently Asked Questions (FAQ) About the Jeep AX5 Transmission

Q1: What Jeeps commonly use the AX5 transmission?
A1: The AX5 was primarily used in Jeep Wrangler YJ (1987-1995), Cherokee XJ (1984-2000), and Comanche MJ (1986-1992) models, specifically those equipped with the 2.5L four-cylinder engine. Some early Wrangler TJ (1997-1999) models also used it with the 2.5L engine.

Q2: Is the AX5 a strong transmission? Can I put it behind a 4.0L engine?
A2: No, the AX5 is not considered a strong transmission for heavy-duty use. It was designed for the lighter 2.5L engine. It is generally not recommended to put an AX5 behind a 4.0L engine due to different bell housing bolt patterns and the AX5’s inability to handle the 4.0L’s increased torque and horsepower. Doing so would likely result in rapid failure.

Q3: What type of fluid does the AX5 transmission use?
A3: The AX5 typically requires a GL-3 or GL-4 rated manual transmission fluid. It’s crucial to avoid GL-5 fluids unless they are specifically labeled "safe for yellow metals" or "compatible with brass synchros," as the sulfur compounds in standard GL-5 can corrode the brass synchronizers over time. Always check your owner’s manual or a reputable service guide for the exact specification.

Q4: How long does an AX5 typically last?
A4: With proper maintenance and responsible driving, an AX5 can last 100,000 to 150,000 miles or more in stock applications. However, aggressive driving, oversized tires without re-gearing, heavy towing, or lack of fluid changes can significantly shorten its lifespan.

Q5: What are the most common problems with the AX5?
A5: Common issues include worn input shaft bearings (leading to noise), worn synchros (causing grinding when shifting, especially into 3rd or 5th gear), and general internal wear from extended use or abuse. Fluid leaks from seals are also common with age.

Q6: Is it worth rebuilding an AX5, or should I just buy a remanufactured unit?
A6: If you have the mechanical skills, specialized tools, and time, rebuilding an AX5 can be cost-effective. However, for most owners, a professionally remanufactured unit with a warranty offers better peace of mind and often a more reliable long-term solution, as it’s been rebuilt by experts with proper equipment and testing.

Conclusion: Keeping Your Classic Jeep Shifting Smoothly

The Jeep AX5 transmission is a vital component for many classic 2.5L-powered Jeeps, enabling countless adventures on and off the pavement. While age and use can lead to its eventual demise, a variety of options exist for those seeking an AX5 transmission for sale. Whether you opt for a budget-friendly used unit, a professionally remanufactured gearbox, or a DIY rebuild, careful research, a thorough understanding of compatibility, and a focus on quality will ensure your beloved Jeep continues to shift smoothly for years to come. With the right approach, replacing your AX5 can be a rewarding project that extends the life of your iconic vehicle.
